Product Introduction

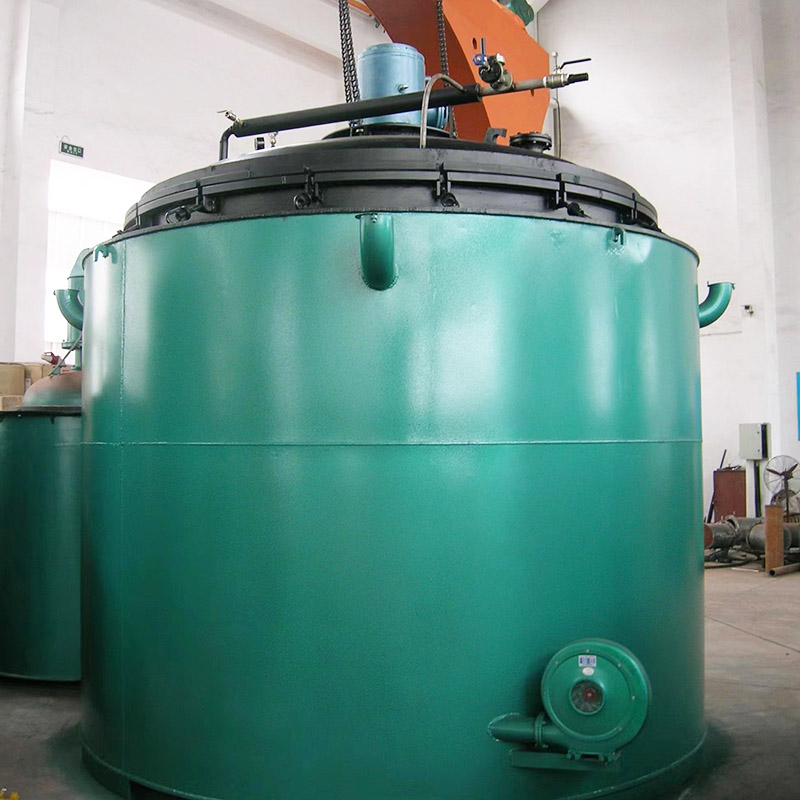

Pit-type heating furnace and tempering furnace
产品测试产品测试产品测试产品测试产品测试产品测试
Product Details
Product description of pit-type heating furnace and tempering furnace
Purpose: For heating, annealing, normalizing, quenching, and tempering of mechanical parts, especially slender shafts. The parts can be hung for heating, which can greatly reduce deformation.
模型 | 额定功率（KW） | 电源电压 （V） | 相数 | 额定温度 (℃) | 工作区大小 直径长(mm) | 重量（KG） |
RJ2-30-9 | 30 | 380 | 3 | 950 | Ø450 x 800 | 2000 |
RJ2-40-9 | 40 | 380 | 3 | 950 | Ø600 x 800 | 2300 |
RJ2-60-9 | 60 | 380 | 3 | 950 | Ø800×1000 | 3000 |
65 | 380 | 3 | Ø600 x 1600 | 4000 | ||
RJ2-75-9 | 75 | 380 | 3 | 950 | Ø600 x 2400 | 5500 |
RJ2-90-9 | 90 | 380 | 3 | 950 | Ø1000 x 1200 | 4500 |
RJ2-95-9 | 95 | 380 | 3 | 950 | Ø800 x 2000 | 5000 |
RJ2-125-9 | 125 | 380 | 3 | 950 | Ø800 x 3000 | 6000 |
RJ2-140-9 | 140 | 380 | 3 | 950 | Ø1000 x 2400 | 6500 |
RJ2-190-9 | 190 | 380 | 3 | 950 | Ø1000 x 3600 | 8000 |
RJ2-25-6 | 25 | 380 | 3 | 650 | Ø400 x 500 | 1200 |
RJ2-35-6 | 35 | 380 | 3 | 650 | Ø500 x 650 | 1300 |
RJ2-55-9 | 55 | 380 | 3 | 650 | Ø700 x 900 | 2000 |
RJ2-75-6 | 75 | 380 | 3 | 650 | Ø950 x 1200 | 2800 |
